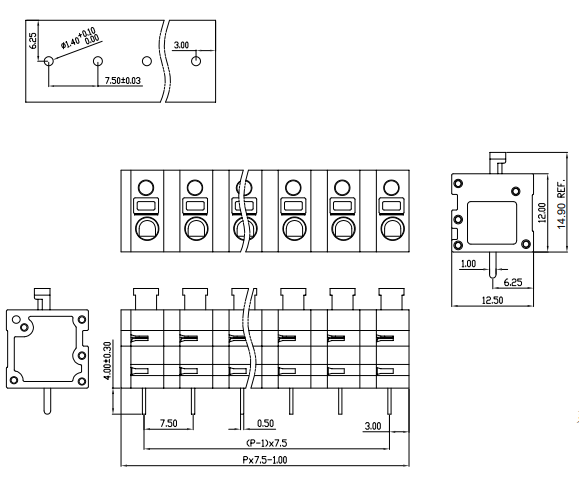

FS1.5-XX-750-02 PCB spring terminal block

  • PCB spring terminal block Rated current: 10A Rated voltage: 300 V Wire range: 26-14AWG Pitch: 7.5mm Mounting: Wave soldering
  • Poles
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
Products weight: Package quantity:

Details

技术数据-UL/CUL
等级 Use GroupBCD
等级 Use Group300--
额定电流 Rated Current [A]10--
接线范围 Wire Range [AWG]26~14
耐电压 Dielectric Voltage-Withstand1.6KV

技术参数-IEC
过电压类别 Overvoltage CategoryIIIIIIII
污染等级 Contamination Class322
额定电压 Rated Voltage [V]320320630
额定电流 Rated Current [A]17.517.517.5
额定冲击电压 Impulse withstand voltage [KV]444
导线截面积[硬/柔] Conductor cross section [mm²]0.2~1.5

材料 Material
绝缘材料 Insulation MaterialPA66
阻燃等级 Flame relardant ratingUL94-V0
导体材料 Conductor MaterialCopper alloy
导体表面镀层 Plating of conductor surfaceSn plated

一般参数 Other Data
间距/极数 Pitch/Poles [mm]/[P]7.5/1~30
剥线长度 Stripping Length [mm]11
螺丝/扭矩 Screw/Torque(Max)[N.m] /
工作温度 Operating temperature [℃]-40~+105
焊锡温度 Soldering temperature250℃/5S
引针尺寸 Pin dimensions [mm]0.9*0.8
PCB板孔径 PCB Hole Diameter [mm]∅1.3
