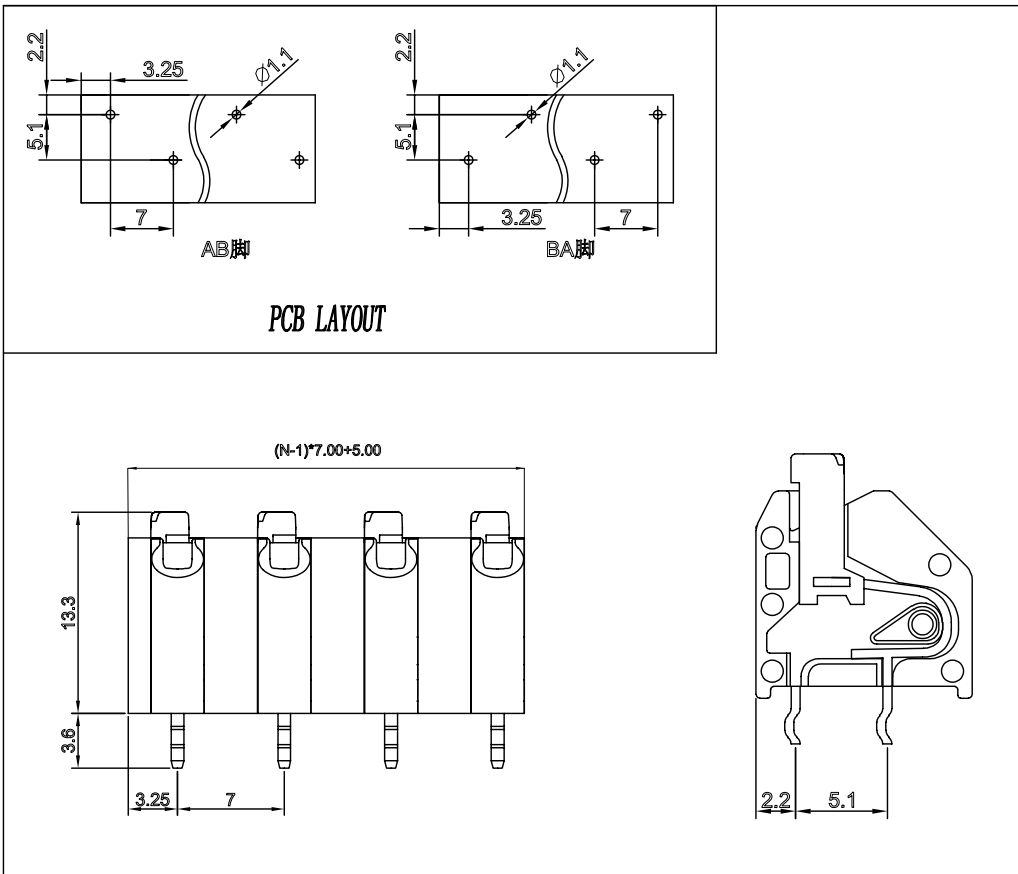

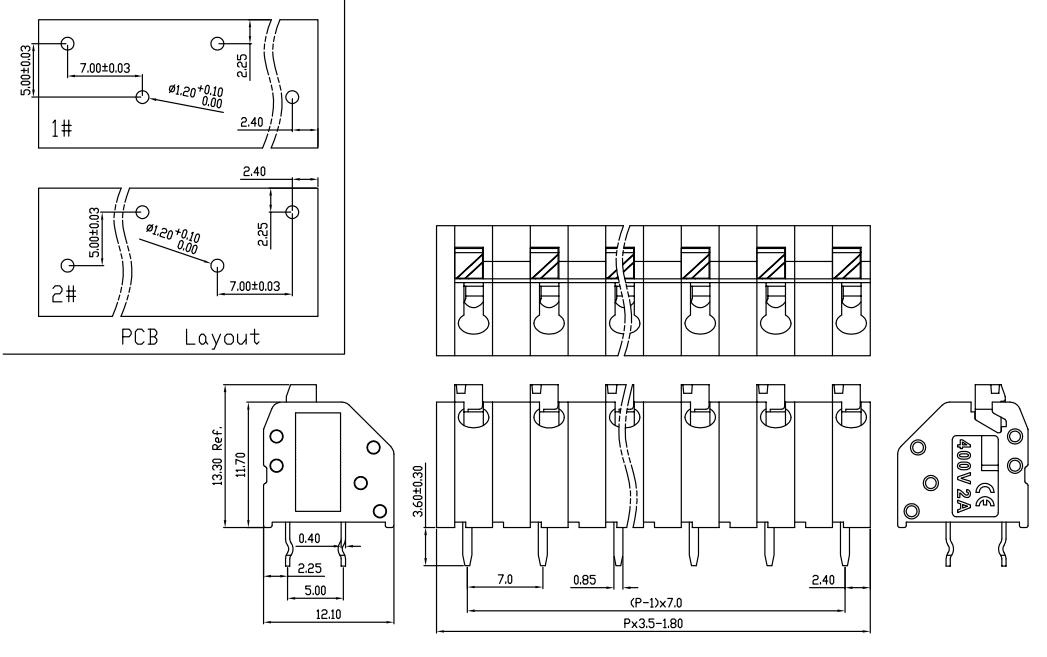

FS1.5-XX-700-04 PCB spring terminal block

  • PCB spring terminal block Rated current: 5 A Rated voltage: 300 V Wire range: 22-18 AWG Pitch: 7.0mm Mounting: Wave soldering
  • 02
    03
    04
    5
    6
    7
    8
    9
    10
    11
    12
Products weight: Package quantity:

Details

技术数据-UL/CUL
等级 Use GroupBCD
等级 Use Group300-300
额定电流 Rated Current [A]5-5
接线范围 Wire Range [AWG]22~18
耐电压 Dielectric Voltage-Withstand1.6KV

技术参数-IEC
过电压类别 Overvoltage CategoryIIIIIIII
污染等级 Contamination Class322
额定电压 Rated Voltage [V]160160320
额定电流 Rated Current [A]888
额定冲击电压 Impulse withstand voltage [KV]2.52.52.5
导线截面积[硬/柔] Conductor cross section [mm²]0.2~1.0

材料 Material
绝缘材料 Insulation MaterialPA66
阻燃等级 Flame relardant ratingUL94-V0
导体材料 Conductor MaterialCopper alloy
导体表面镀层 Plating of conductor surfaceSn plated

一般参数 Other Data
间距/极数 Pitch/Poles [mm]/[P]7.0/1~30
剥线长度 Stripping Length [mm]8-9
螺丝/扭矩 Screw/Torque(Max)[N.m] /
工作温度 Operating temperature [℃]-40~+105
焊锡温度 Soldering temperature250℃/5S
引针尺寸 Pin dimensions [mm]0.75*0.4
PCB板孔径 PCB Hole Diameter [mm]∅1.2
