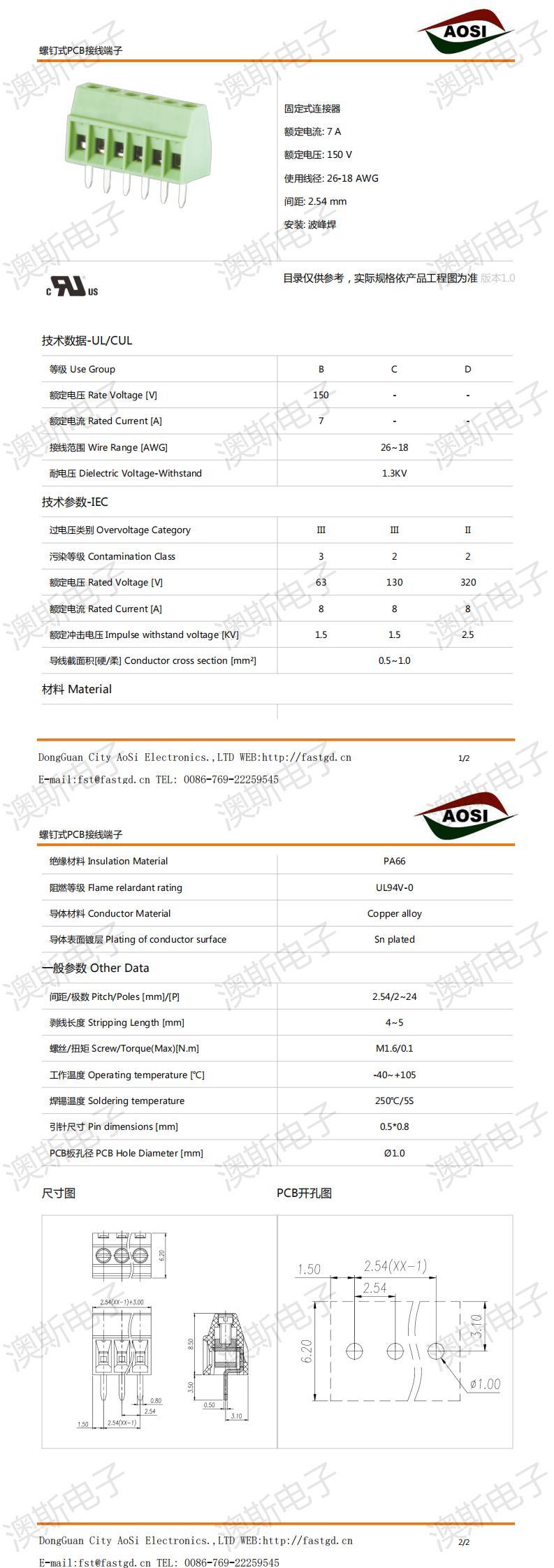

FET1-XX-254-00 PCB Screw terminal block

  • PCB spring terminal block Rated current: 7 A Rated voltage: 150 V Wire range: 26-18 AWG Pitch: 2.54 mm Mounting: Wave soldering
  • 2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
Products weight: Package quantity:

Details

UL/CUL
Use GroupBCD
Use Group150--
Rated Current [A]7--
Wire Range [AWG]26~18
Dielectric Voltage-Withstand1.3KV

IEC
Overvoltage CategoryIIIIIIII
 Contamination Class322
Rated Voltage [V]63130320
Rated Current [A]888
 Impulse withstand voltage [KV]1.51.52.5
Conductor cross section [mm²]0.5~1.0

Material
Insulation MaterialPA66
Flame relardant ratingUL94-V0
Conductor MaterialCopper alloy
Plating of conductor surfaceSn plated

Other Data
Pitch/Poles [mm]/[P]2.54/2~24
Stripping Length [mm]4~5
Screw/Torque(Max)[N.m] M1.6/0.1
Operating temperature [℃]-40~+105
Soldering temperature250℃/5S
Pin dimensions [mm]0.5*0.8
PCB Hole Diameter [mm]∅1.0
