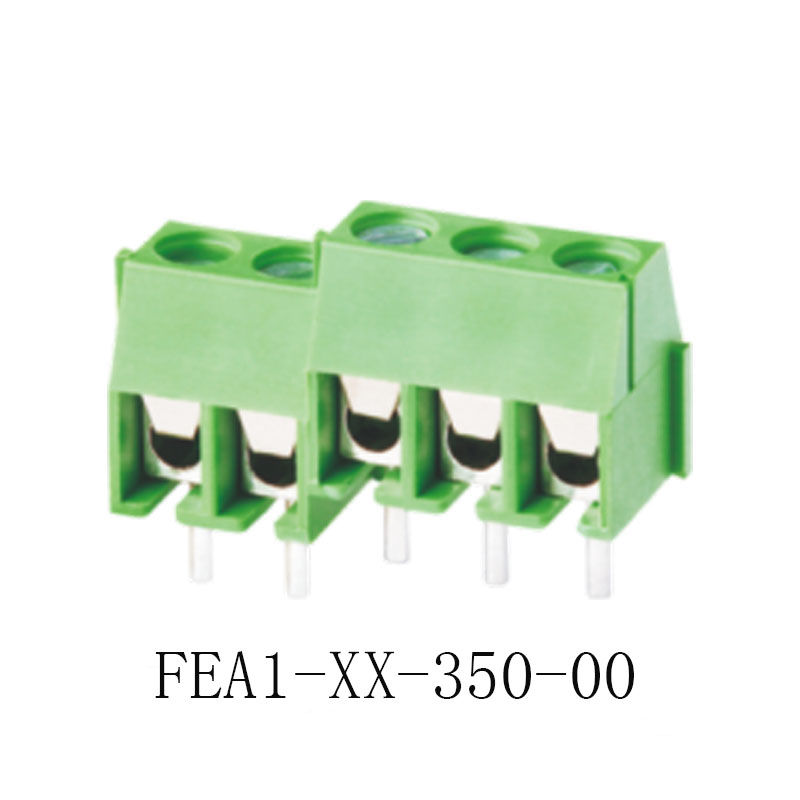

PCB spring terminal block Rated current: 10 A Rated voltage: 300 V Wire range: 24-18 AWG Pitch: 3.5 mm/3.96 mm Mounting: Wave soldering
Poles

2
3
4
5
6
7

8
9
10
11
12
13

14
15
16

Products weight: Package quantity:

UL/CUL
Use Group	B	C	D
Use Group	300	-	-
Rated Current [A]	10	-	-
Wire Range [AWG]	24~18
Dielectric Voltage-Withstand	1.6KV

IEC
Overvoltage Category	III	III	II
Contamination Class	3	2	2
Rated Voltage [V]	160	250	320
Rated Current [A]	13.5	13.5	13.5
Impulse withstand voltage [KV]	2.5	2.5	2.5
Conductor cross section [mm²]	0.5~1.0

Material
Insulation Material	PA66
Flame relardant rating	UL94-V0
Conductor Material	Copper alloy
Plating of conductor surface	Sn plated

Other Data

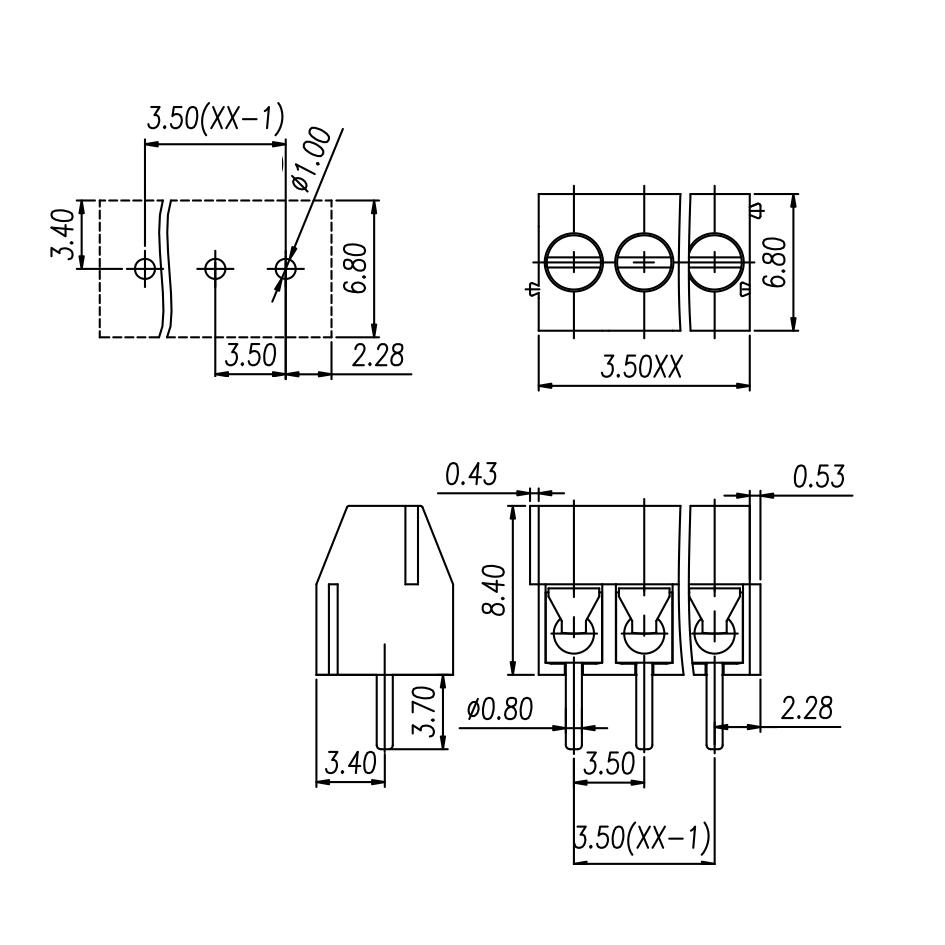

Pitch/Poles [mm]/[P]	3.5 , 3.96/2~24
Stripping Length [mm]	5~6
Screw/Torque(Max)[N.m]	M2/0.2
Operating temperature [℃]	-40~+105
Soldering temperature	250℃/5S
Pin dimensions [mm]	∅0.8
PCB Hole Diameter [mm]	∅1.0
