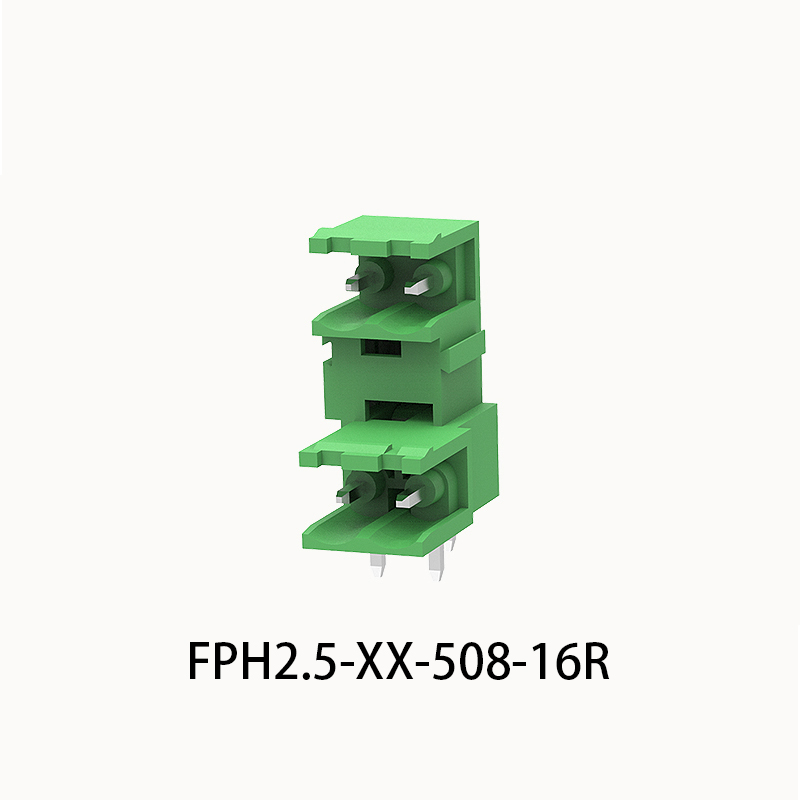

FPH2.5-XX-508-16R PLUG-IN TERMINAL BLOCK

  • plug-in terminal block Rated current: 15A Rated voltage: 300 V Pitch: 5.08 mm
  • Poles
    2*2
    2*3
    2*4
    2*5
    2*6
    2*7
    2*8
    2*9
    2*10
    2*11
    2*12
    2*14
Products weight: Package quantity:

Details



UL/CUL
UL/CUL(Technical Data)
(Use Group)BCD
(Rated Voltage) [V]300
300
(Rated Current) [A]10
10
(Wire Range)
(solid/Standed) [AWG]
(Withstanding Voltage)1600V/1Min
IEC
(Technical Data)
(Overvoltage Category)||||||||
(Contamination Class)322
(Rated Voltage) [V]
320630
(Rated Current) [A]
1515
(Impulse wiithstand voltagea) [KV]
44
(Conductor cross section)
(Solid/flexible)  [mm²]
(Material)
(Insulation Material)PA66
(Imflammability)UL94V-0
(Contactor Material)Copper alloy
(Contactive Coating)Tin Plated
(Other Data)
(Pitch) [mm]5.08
(Poles) [P]2-24
(Stripping Length) [mm]
(Screw)
(Torque Max) [N.m]
(Operating temperatur)  [℃]-40~+105
(Pin Dimensions)  [mm]4
(PCB Hole Diameter)  [mm]1.6
