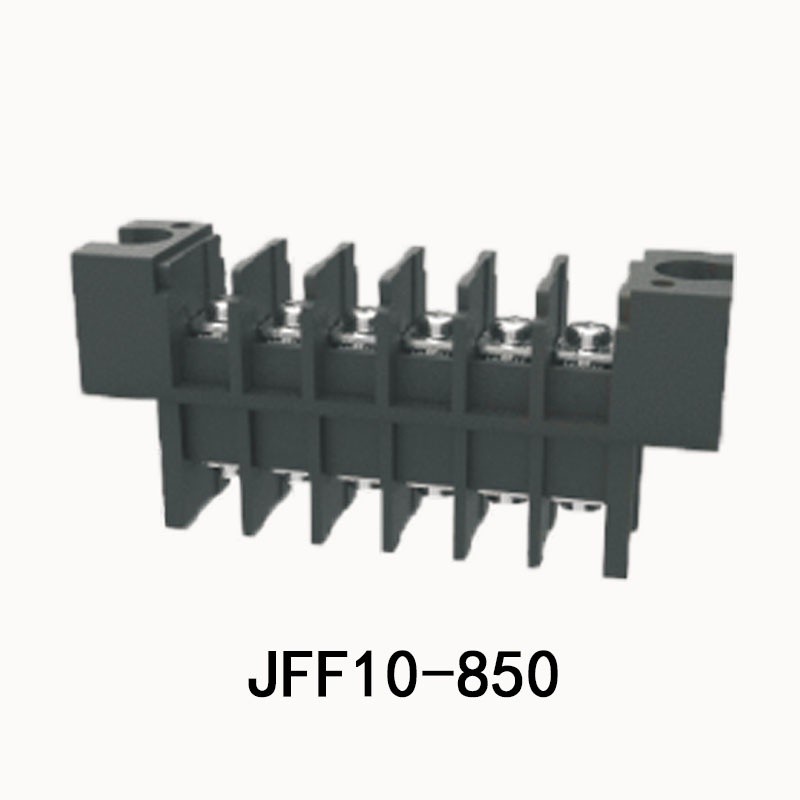

JFF10-850 Barrier-terminal-blocks
Porducts
Contact Us
DONGGUAN CITY AOSI ELECTRONICS .,LTD
Ashley
TEL: +86-15999768769
Helen
TEL: +86-15016766649
Cindy
TEL: +86-15014816629
E-mail : helenqing123@gmail.com
| Material | ||
| Screws | M3.0 Steel Ni plated | |
| Pin Header | Copper alloy，Sn plated | |
| Housing | PBT，UL94V-0 | |
| Electrical | ||
| Standard | UL | |
| Rated voltage | 300V | |
| Rated current | 20A | |
| Wire range | 22-12AWG | |
| Contact Resistance | 20mΩ | |
| Insulation resistance | 500MΩ/DC500V | |
| Withstanding voltage | AC2000V/1Min | |
| Other Data | ||
| Pitch/Poles [mm]/[P] | 8.5/2-15 | |
| Operating temperature [℃] | -40℃~+130℃ | |
| Torque | 10.2Kgf.cm/1.0Nm/8.85Lb.in | |
