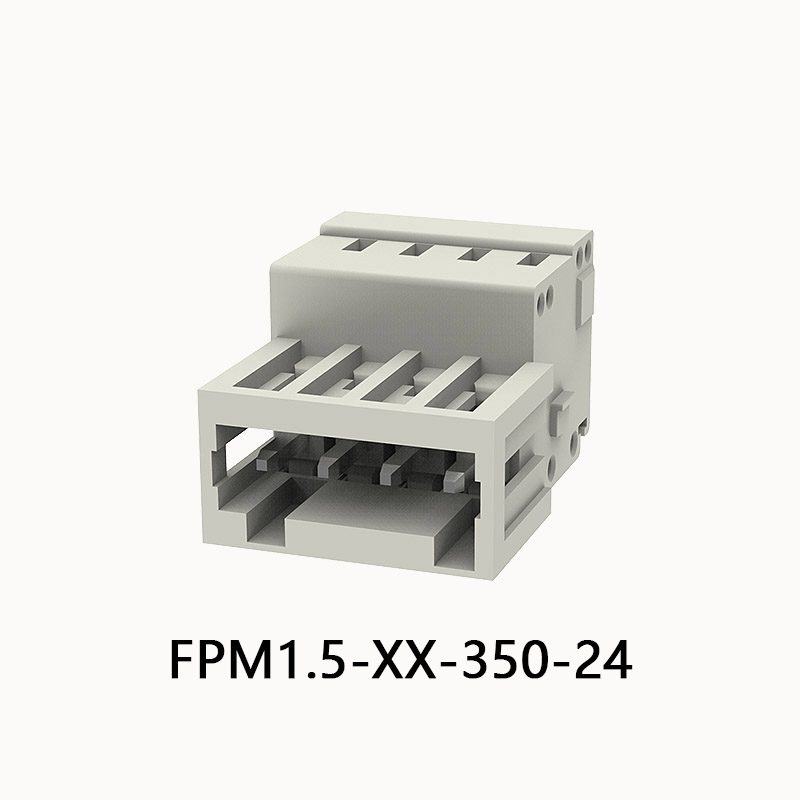

FPM1.5-XX-350-24 MCS Terminal blocks
Porducts
Contact Us
DONGGUAN CITY AOSI ELECTRONICS .,LTD
Ashley
TEL: +86-15999768769
Helen
TEL: +86-15016766649
Cindy
TEL: +86-15014816629
E-mail : helenqing123@gmail.com
| UL/CUL | |||
| Use Group | B | C | D |
| Use Group | 300 | - | 300 |
| Rated Current [A] | 8 | - | 8 |
| Wire Range [AWG] | 28-26 | ||
| Dielectric Voltage-Withstand | 1.6KV | ||
| IEC | |||
| Overvoltage Category | III | III | II |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage [V] | 160 | 160 | 250 |
| ated Current [A] | 7 | 7 | 7 |
| Impulse withstand voltage [KV] | 2.5 | 2.5 | 2.5 |
| Conductor cross section [mm²] | 0.5~1.5 | ||
| Material | |||
| Insulation Material | PA66 | ||
| Flame relardant rating | UL94-V0 | ||
| Conductor Material | Copper alloy | ||
| Plating of conductor surface | Sn piated | ||
| Other Data | |||
| Pitch/Poles [mm]/[P] | 3.5,3.81/2*2-2*24 | ||
| Stripping Length [mm] | 6-7 | ||
| Screw/Torque(Max)[N.m] | M2/0.2 | ||
| Operating temperature [℃] | -40~+105 | ||
| Soldering temperature | / | ||
| Pin dimensions [mm] | / | ||
| PCB Hole Diameter [mm] | / | ||
