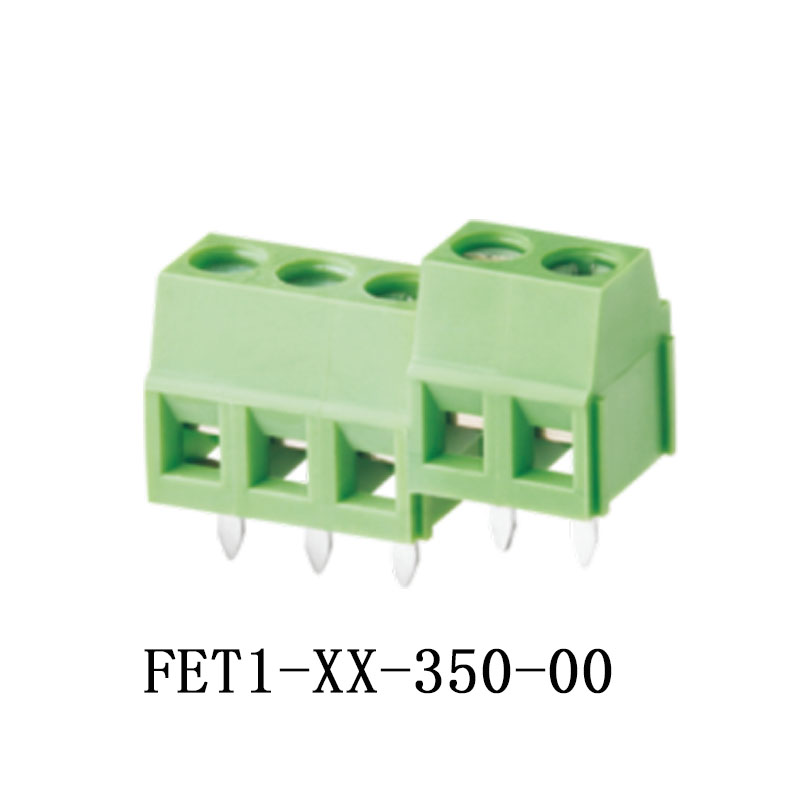

FET1-XX-350-00 SCREW TERMINAL BLOCK

  • PCB spring terminal block Rated current: 10 A Rated voltage: 300 V Wire range: 28-16 AWG Pitch: 3.5 mm/3.81mm Mounting: Wave soldering
  • 2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
Products weight: Package quantity:

Details

技术数据-UL/CUL
等级 Use GroupBCD
等级 Use Group300-300
额定电流 Rated Current [A]10-10
接线范围 Wire Range [AWG]28~16
耐电压 Dielectric Voltage-Withstand1.6KV

技术参数-IEC
过电压类别 Overvoltage CategoryIIIIIIII
污染等级 Contamination Class322
额定电压 Rated Voltage [V]160200400
额定电流 Rated Current [A]13.513.513..5
额定冲击电压 Impulse withstand voltage [KV]2.52.52.5
导线截面积[硬/柔] Conductor cross section [mm²]0.5~1.0

材料 Material
绝缘材料 Insulation MaterialPA66
阻燃等级 Flame relardant ratingUL94-V0
导体材料 Conductor MaterialCopper alloy
导体表面镀层 Plating of conductor surfaceSn plated

一般参数 Other Data

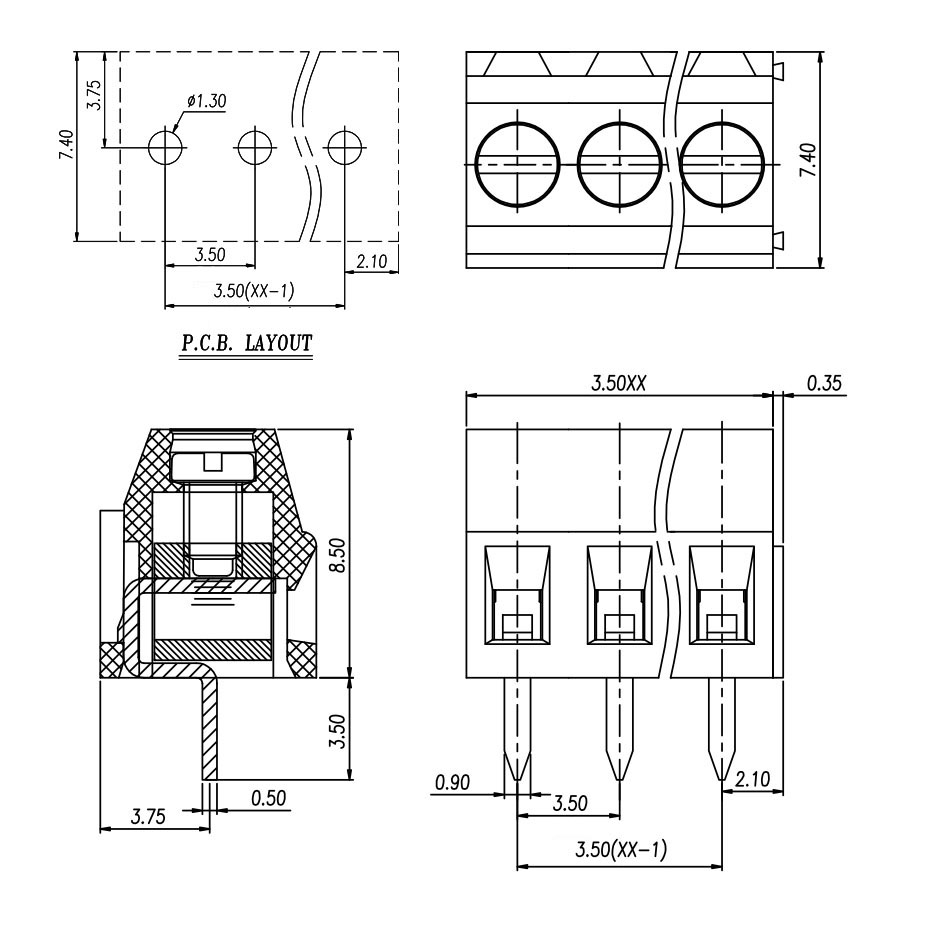

间距/极数 Pitch/Poles [mm]/[P]3.5 ,3.81/2-24
剥线长度 Stripping Length [mm]4-5
螺丝/扭矩 Screw/Torque(Max)[N.m] M2/0.2
工作温度 Operating temperature [℃]-40~+105
焊锡温度 Soldering temperature250℃/5S
引针尺寸 Pin dimensions [mm]0.5*0.9
PCB板孔径 PCB Hole Diameter [mm]∅1.3
