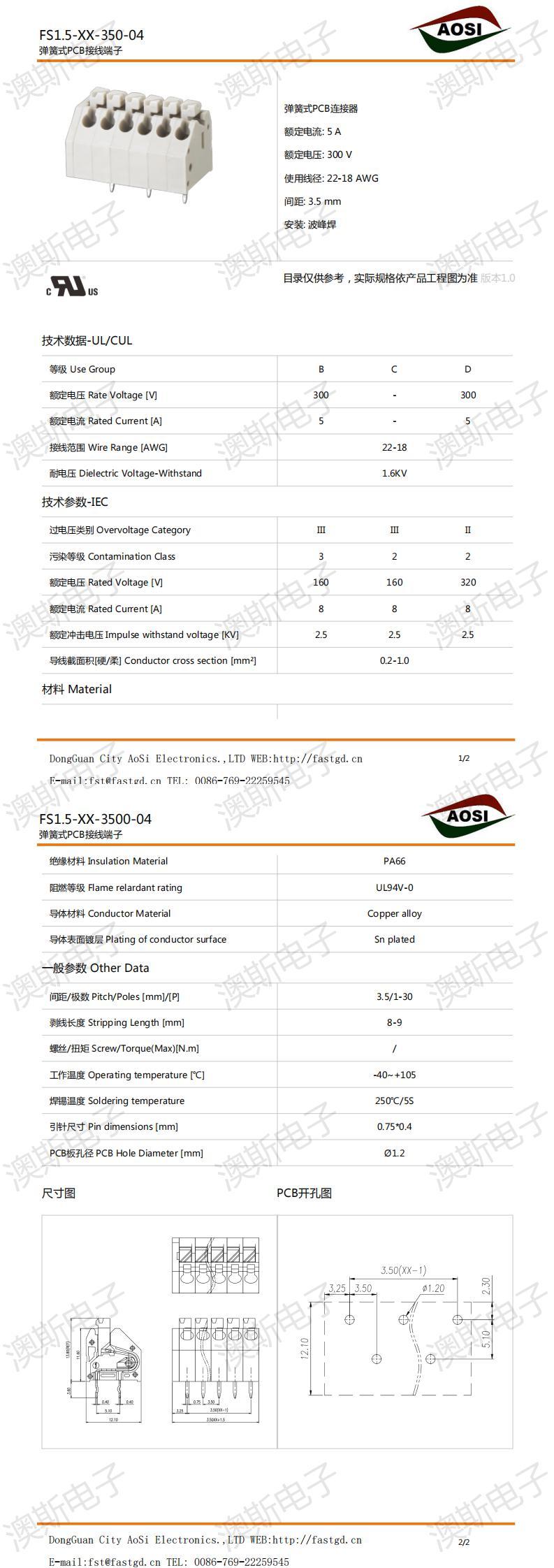

PCB spring terminal block Rated current: 5 A Rated voltage: 300 V Wire range: 22-18 AWG Pitch: 3.5mm Mounting: Wave soldering
Poles

1
2
3
4
5
6

7
8
9
10
11
12

13
14
15
16
17
18

19
20
21
22
23
24

Products weight: Package quantity:

UL/CUL
Use Group	B	C	D
Use Group	300	-	300
Rated Current [A]	5	-	5
Wire Range [AWG]	22~18
Dielectric Voltage-Withstand	1.6KV

IEC
Overvoltage Category	III	III	II
Contamination Class	3	2	2
Voltage [V]	160	160	320
Rated Current [A]	8	8	8
Impulse withstand voltage [KV]	2.5	2.5	2.5
Conductor cross section [mm²]	0.2~1.0

Material
Insulation Material	PA66
Flame relardant rating	UL94-V0
Conductor Material	Copper alloy
Plating of conductor surface	Sn plated

Other Data
Pitch/Poles [mm]/[P]	3.5/1~30
Stripping Length [mm]	8-9
Screw/Torque(Max)[N.m]	/
Operating temperature [℃]	-40~+105
Soldering temperature	250℃/5S
Pin dimensions [mm]	0.75*0.4
PCB Hole Diameter [mm]	∅1.2
